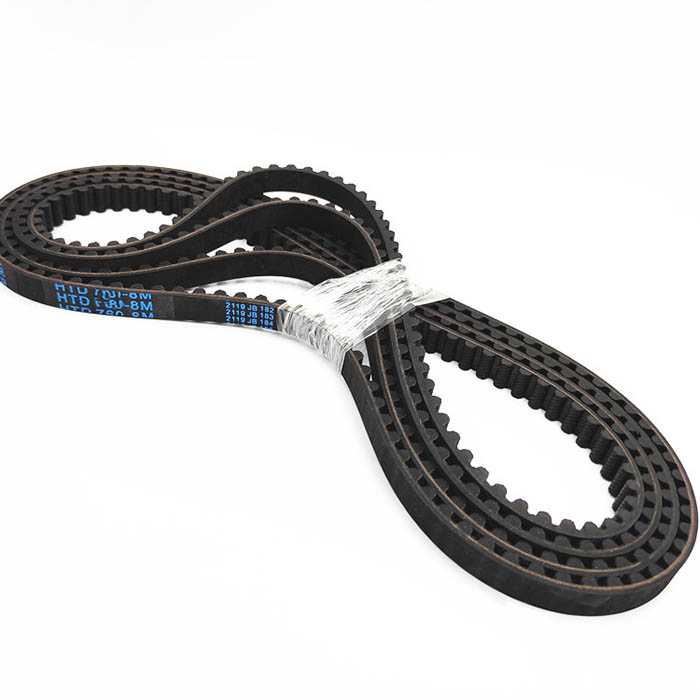

Timing Belt HTD 688-8M 86 teeth

HTD 688-8M timing belt specification：

Model Number:HTD 8M-688 belt, HTD 688-8m belt
Material: Neoprene rubber with fiber glass core
Belt Height: 6mm(0.236″)
Tooth Height: 3.38mm(0.134″)
Pitch: 8mm(0.315″)
Tooth nubmer:86 teeth
Width: 9mm,10mm ,12mm,15mm ,18mm,20mm,25mm,30mm,35mm 40mm.45mm,50mm, 60mm 70mm or customized
Customized: Yes
Package: 1pcs HTD 8M-688 Timing Belt Replacement 86 Teeth,pitch 8mm ，length 688 mm
Useage field:The HTD profile 8M timing belts are used in all industrial applications for compact drives in small home appliances, printers, scanners, copiers, textile machines, machine tools and many other machines and equipment

Timing Belt HTD 688-8M Common Models:

HTD-688-8M-10. HTD-688-8M-15. HTD-688-8M-18.
HTD-688-8M-20. HTD-688-8M-25. HTD-688-8M-30.
HTD-688-8M-35. HTD-688-8M-40. HTD-688-8M-45.
HTD-688-8M-50. HTD-688-8M-60
688-8M or any width you want

About Shipping:

1. Handling Time: Most belts in stock, just cut the length as per your request, so we can ship out within 1-2 working days.
2. We normally ship the packages by UPS, Fedex or DHL and so on
but if you want cheaper shipping, such as China Post , E-Packet, Aliexpress Standard Shipping and so on, welcome contact us.

About Return Policy:

1. If quality problem, we very like to change a new belt for free, or refund to you
2. If no quality problem, we do not accept refund, Becasue all belts width cut by your request, they are customize, Thank you for understanding
