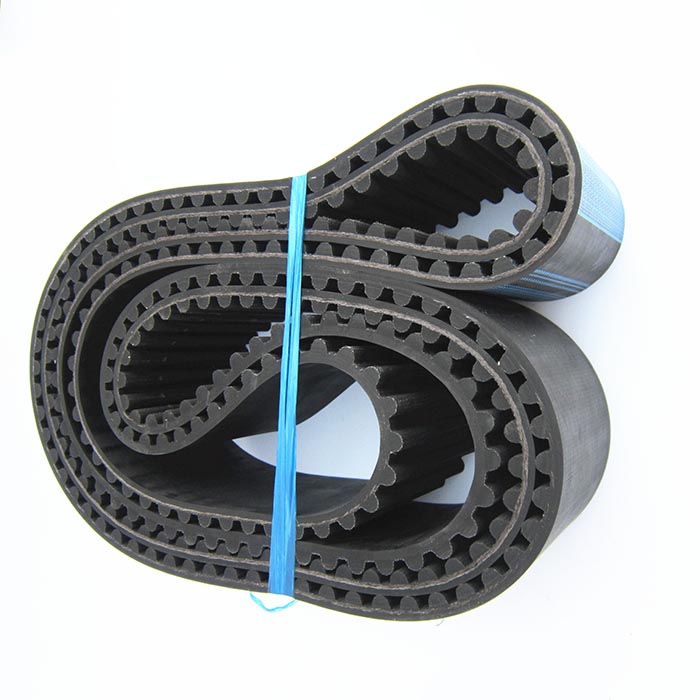

Timing Belt HTD 1932-14M 138 teeth

HTD 1932-14M timing belts specification

Model Number:HTD 14M-1932,1932-14m belt
Material: Neoprene rubber with fiber glass core
Belt Height: 10mm(0.394″)
Tooth Height:6.02mm(0.237″)
Pitch: 14mm(0.551″)
Tooth nubmer:138 teeth

Width: 20mm,25mm ,30mm,32mm ,35mm,38mm,40mm,45mm,50mm, 55mm.60mm,65mm, 70mm, 75mm, 80mm, 85mm,10mm,115mm,120mm,170mm or any length you want
Customized: Yes
Package: 1pcs HTD 14M-1932 Timing Belt Replacement 138 Teeth, pitch 14mm, length 1932 mm
Useage field:The HTD profile 14 M timing belts are used in all industrial applications for compact drives in small home appliances, printers, scanners, copiers, textile machines, machine tools and many other machines and equipment

Timing Belt HTD 1932-14M Common Models:

HTD-1932-14M-20. HTD-1932-14M-25. HTD-1932-14M-30. HTD-1932-14M-32. HTD-1932-14M-35. HTD-1932-14M-38.
HTD-1932-14M-40. HTD-1932-14M-45. HTD-1932-14M-50.HTD-1932-14M-55. HTD-1932-14M-65. HTD-1932-14M-70.
HTD-1932-14M-75. HTD-1932-14M-80. HTD-1932-14M-85. HTD-1932-14M-115. HTD-1932-14M-120. HTD-1932-14M-127.
HTD-1932-14M-170

HTD 1932-14M. HTD 14M-1932 or any width you want

About Shipping:

1. Handling Time: Most belts in stock, just cut the width as per your request, so we can ship out within 1-2 working days.
2. We normally ship the packages by UPS, Fedex or DHL and so on. but if you want cheaper shipping, such as China Post , E-Packet, Aliexpress Standard Shipping and so on, welcome contact us.

About Return Policy:

1. If quality problem, we very like to change a new belt for free, or refund to you.
2. If no quality problem, we do not accept refund, Becasue all belts width cut by your request, they are customize, Thank you for understanding
