S3M Synchronous Belt

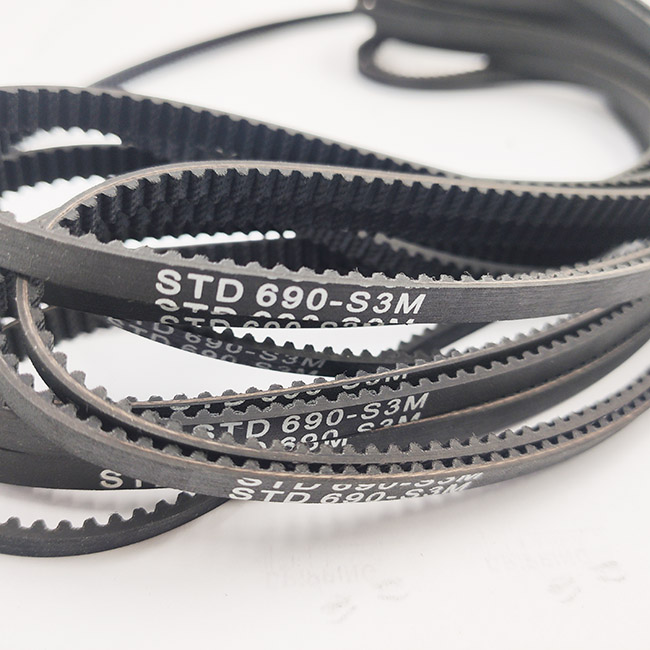

STD 690-S3M rubber timing belt 230 teeth
STD 690-S3M Timing Belt: 690 mm length, 3 mm pitch, 230 teeth
Width: can cut any width by your request
$1.00 – $6.40
STD 690-S3M rubber timing belt specification
- Model Number: STD 690-S3M belt, STS 690-S3M, or S3M-690 timing belt
- Teeth No:230 teeth
- Material: Neoprene rubber with fiber glass core
- Type: Standard component, STD S3M Timing Belt
- Belt thickess: 2.10mm
- Tooth Height: 1.14mm
- Pitch: 3mm
- Width:3mm,4mm,5mm,6mm,8mm,9mm,10mm,12mm,15mm,18mm,20mm,25mm,30mm,50mm or any width you want,we can accept customized width.
- If you didnt find you want, please search the length, or width, or pitch on our website!!! or contact us!
About Shipping:
- Handling Time: Most belts in stock, just cut the width as per your request, so we can ship out within 1-2 working days.
- We normally ship the packages by UPS, Fedex or DHL and so on. but if you want cheaper shipping cost, such as China Post , E-Packet, Aliexpress Standard Shipping and so on, welcome contact us.
About Return Policy:
- If quality problem, we very like to change a new belt for free, or refund to you.
- If no quality problem, we do not accept refund, because all belts width cut by your request, they are customize, Thank you for understanding
| Width | 3mm, 5mm, 6mm, 8mm, 9mm, 10mm, 12mm, 15mm, 20mm, 25mm, other width, inquiry sales@3vbelt.com |
|---|
