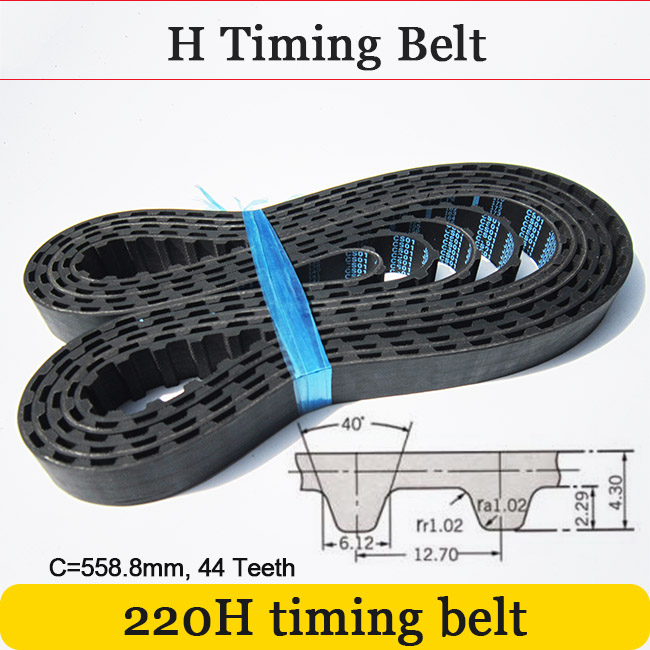

H Pitch 220H Timing belt 44 Teeth


220H Rubber timing belt replacementC=558.8 mm, Pitch:0.5″(12.7mm), 44 Teeth
width: 10mm, 050(12.7mm), 075(19.05mm),100(25.4mm), 150(38.1mm),200(50.8mm)
or any width cut by your request.

$1.00$5.60

220H timing belt , Profile H = 1/2″ = 12. 7 mm,  Classical shape with trapezoid  44 teeth

width: 0.50″(12.7mm), 0.75″(19.05mm), 1″(25.4mm), 1.50″(38.1mm),2″(50.8mm), 3″(76.2mm) or any width cut by your request.

220H Belt Specification

  • Model Number: 220H timing belt, H series Closed-loop Timing belt, timing belt replacement
  • Length: C= 558.8mm
  • Type: Standard Parts endless H Timing Belt
  • Material: Neoprene  rubber with fiber glass core
  • Belt Height: 0.169″(4.30mm)
  • Tooth Height:0.09″(2.29mm)
  • Pitch:0.5″(12.7mm)
  • Width:  0.50″(12.7mm), 0.75″(19.05mm), 1″(25.4mm), 1.50″(38.1mm),2″(50.8mm), 3″(76.2mm) or any width cut by your request.
  • If you didnt find you want, please contact us! sales@3vbelt.com

Common Type Number:

220H Timing Belt  220H 037, 220H 050, 220H 075,220H 100,  220H 150 Customizing all kinds of  H timing belt including Double-sided H timing belt, Red/green rubber coated belt

About Shipping:

  1. Handling Time: Most belts in stock, just cut the length as per your request, so we can ship out within 1-2 working days.
  2. We normally ship the packages by UPS, Fedex or DHL and so on but if you want cheaper shipping cost, such as China Post , E-Packet, Aliexpress Standard Shipping and so on, welcome contact us.

About Return Policy:

  1. If quality problem, we very like to change a new belt for free, or refund to you.
  2. If no quality problem, we do not accept refund, Becasue all belts width cut by your request, they are customize, Thank you for understanding
SKU: 220H Timing belt Category: Tag:
Width

10mm, 050(0.5"/12.7mm), 075(0.75"/19.05mm), 100(1"/25.4mm), 150(1.5"/38.1mm), 200(2"/50.8mm), 300(3"/76.2mm), other width, inquiry sales@3vbelt.com
