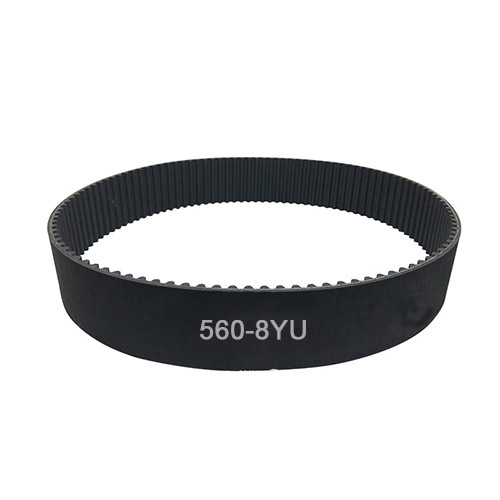

560-8YU Rubber Timing Belt 70 tooth Pitch 8mm
width:6 mm 9mm 10mm 12mm 15mm 18mm 20mm 25mm 30mm 35mm 38mm 40mm 45mm 50mm or any width cut by your request.
Specification
- Model Number: 8YU560, 8YU-560 560-8YU Timing belt
- Type: Standard component, 8YU Closed-loop Timing Belt
- Material: Neoprene rubber with fiber glass core
- Belt Height: 5.20mm
- Tooth Height: 3.109mm
- Pitch: 8mm
- Width:9mm,15mm,20mm,25mm,30mm,40mm,45mm,50mm or any width you want,we can accept customized length
- If you didnt find you want, please search the length, or width, or pictch on our website!!! or contact us!
About Shipping:
- Handling Time: Most belts in stock, just cut the length as per your request, so we can ship out within 1-2 working days.
- We normally ship the packages by UPS, Fedex or DHL and so on but if you want cheaper shipping cost, such as China Post , E-Packet, Aliexpress Standard Shipping and so on, welcome contact us.
About Return Policy:
- If quality problem, we very like to change a new belt for free, or refund to you.
- If no quality problem, we do not accept refund, Becasue all belts width cut by your request, they are customize, Thank you for understanding
Stock belt list
480-8YU | 760-8YU | 856-8YU | 936-8YU | 1008-8YU | 1088-8YU | 1168-8YU | 1248-8YU | 1392-8YU | 1976-8YU |
560-8YU | 768-8YU | 864-8YU | 944-8YU | 1016-8YU | 1096-8YU | 1176-8YU | 1256-8YU | 1400-8YU | 2000-8YU |
656-8YU | 792-8YU | 880-8YU | 952-8YU | 1024-8YU | 1104-8YU | 1184-8YU | 1280-8YU | 1424-8YU | 2096-8YU |
664-8YU | 800-8YU | 888-8YU | 960-8YU | 1032-8YU | 1120-8YU | 1192-8YU | 1288-8YU | 1440-8YU | 2800-8YU |
704-8YU | 808-8YU | 896-8YU | 968-8YU | 1040-8YU | 1128-8YU | 1200-8YU | 1296-8YU | 1480-8YU | 3280-8YU |
720-8YU | 824-8YU | 904-8YU | 976-8YU | 1056-8YU | 1136-8YU | 1208-8YU | 1304-8YU | 1600-8YU | More … |
728-8YU | 832-8YU | 912-8YU | 984-8YU | 1064-8YU | 1144-8YU | 1216-8YU | 1312-8YU | 1640-8YU | |
736-8YU | 840-8YU | 920-8YU | 992-8YU | 1072-8YU | 1152-8YU | 1224-8YU | 1320-8YU | 1888-8YU | |
744-8YU | 848-8YU | 928-8YU | 1000-8YU | 1080-8YU | 1160-8YU | 1240-8YU | 1344-8YU | 1928-8YU |
