195H Synchronous H Timing Belt 39 Teeth


195H Rubber timing belt replacementC=495.3 mm, Pitch:0.5″(12.7mm), 39 Teeth
width: 10mm, 050(12.7mm), 075(19.05mm),100(25.4mm), 150(38.1mm),200(50.8mm)
or any width cut by your request.

$1.00$4.90

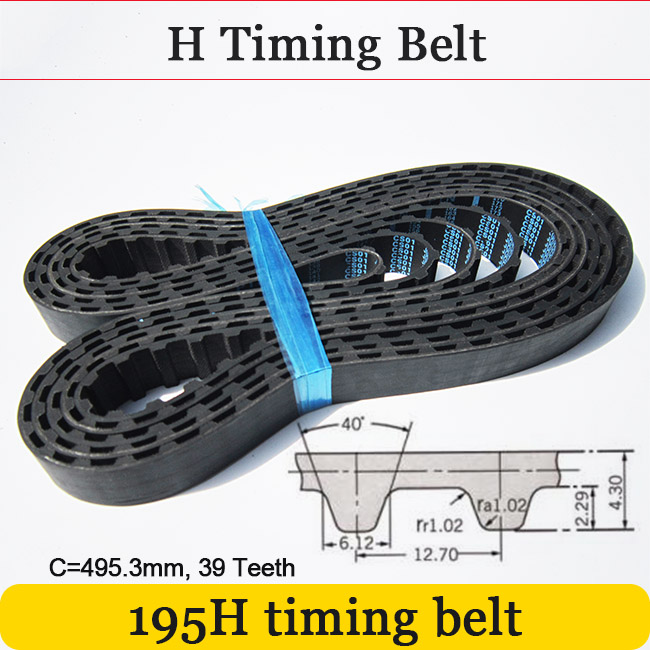

H timing belt 195H, Profile H = 1/2″ = 12. 7 mm,  classical shape with trapezoid 39 teeth

width: 0.50″(12.7mm), 0.75″(19.05mm), 1″(25.4mm), 1.50″(38.1mm),2″(50.8mm), 3″(76.2mm) or any width cut by your request.

195H Belt Specification

  • Model Number: 195H timing belt, H series Closed-loop Timing belt, timing belt replacement
  • Length: C= 495.3mm
  • Type: Standard Parts endless H Timing Belt
  • Material: Neoprene  rubber with fiber glass core
  • Belt Height: 0.169″(4.30mm)
  • Tooth Height:0.09″(2.29mm)
  • Pitch:0.5″(12.7mm)
  • Width:  0.50″(12.7mm), 0.75″(19.05mm), 1″(25.4mm), 1.50″(38.1mm),2″(50.8mm), 3″(76.2mm) or any width cut by your request.
  • If you didnt find you want, please contact us! sales@3vbelt.com

Common Type Number:

195H Timing Belt  195H 037, 195H 050, 195H 075,195H 100,  195H 150 Customizing all kinds of  H timing belt including Double-sided H timing belt, Red/green rubber coated belt
