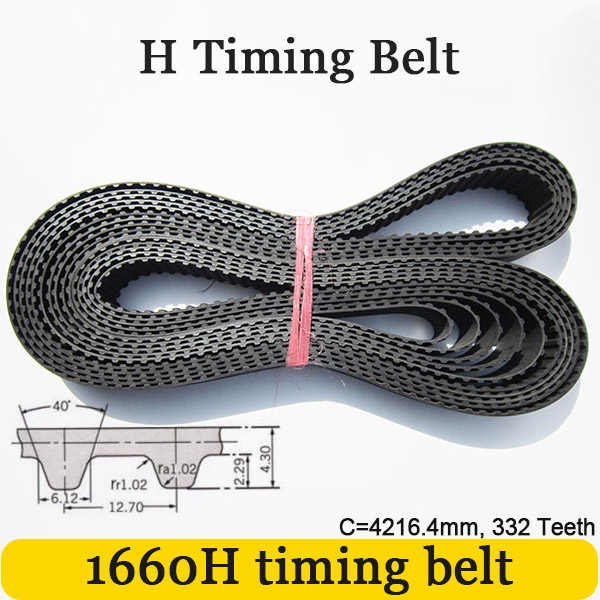

1660H Timing belt 332 Teeth


1660 H Rubber timing belt replacementC=4216.4mm, Pitch:1/2″(12.7mm), 332 Teeth
width: 10mm, 050(12.7mm), 075(19.05mm), 100(25.4mm), 150(38.1mm), 200(50.8mm)
or any width cut by your request.

$8.00$72.90

1660 H timing belt , Profile H = 1/2″ = 12. 7 mm,  Classical shape with trapezoid  332 teeth

width: 0.50″(12.7mm), 0.75″(19.05mm), 1″(25.4mm), 1.50″(38.1mm),2″(50.8mm), 3″(76.2mm) or any width cut by your request.

1660 H Belt Specification

  • Model Number: 1660H timing belt, H series Closed-loop Timing belt, timing belt replacement
  • Length: C= 4216.4mm
  • Type: Standard Parts endless H Timing Belt
  • Material: Neoprene  rubber with fiber glass core
  • Belt Height: 0.169″(4.30mm)
  • Tooth Height:0.09″(2.29mm)
  • Pitch:0.5″(12.7mm)
  • Width:  0.50″(12.7mm), 0.75″(19.05mm), 1″(25.4mm), 1.50″(38.1mm),2″(50.8mm), 3″(76.2mm) or any width cut by your request.
  • If you didnt find you want, please contact us! sales@3vbelt.com

Common Type Number:

1660H Timing Belt, 1660H 037, 1660H 050, 1660H 075, 1660H 100,  1660H 150 Customizing all kinds of  H timing belt including Double-sided H timing belt, Red/green rubber coated belt

About Shipping:

  1. Handling Time: Most belts in stock, just cut the length as per your request, so we can ship out within 1-2 working days.
  2. We normally ship the packages by UPS, Fedex or DHL and so on but if you want cheaper shipping cost, such as China Post , E-Packet, Aliexpress Standard Shipping and so on, welcome contact us.

About Return Policy:

  1. If quality problem, we very like to change a new belt for free, or refund to you.
  2. If no quality problem, we do not accept refund, Becasue all belts width cut by your request, they are customize, Thank you for understanding
SKU: 1660H Timing belt Category:
Width

10mm, 050(0.5"/12.7mm), 075(0.75"/19.05mm), 100(1"/25.4mm), 150(1.5"/38.1mm), 200(2"/50.8mm), 300(3"/76.2mm), other width, inquiry sales@3vbelt.com
